Robert Howard (1923–2014): Dot matrix printer & direct imaging press

Robert Howard: May 19, 1923–December 19, 2014
Robert Howard:
May 19, 1923–December 19, 2014

Apple recently removed the headphone jack from the iPhone 7. Owners of the new model are required to use wireless Bluetooth audio or the Lightning port—the only connector on the phone that also charges the battery—for wired headphones. If the headphone jack is a must, owners can purchase the Lighting-to-3.5mm audio adapter separately for $9.

The missing headphone jack has upset some Apple customers. At the iPhone 7 launch, marketing chief Phil Schiller drove home the company’s reasoning, “Maintaining an ancient, single-purpose, analog, big connector doesn’t make sense because that space is at a premium.” As some tech journalists have pointed out, Apple’s decision comes down to one word: progress.

Analog 3.5mm and ¼” audio connectors
Analog 3.5mm and ¼” audio connectors

Actually, the 3.5mm headphone jack is based on technology that is more than one hundred twenty-five years old. It is a miniaturized version of the phone connector originally developed in the late 1870s for operators to manually connect telephone calls by plugging cords into a switchboard.

The 3.5mm format was created in the 1950s for the transistor radio earpiece and was modified in the 1960s for the Sony portable FM radio and again in 1979 for the Sony Walkman. The fact is that the analog headphone jack has been an anachronism since compact disks and other digital technologies like optical audio became available more than thirty years ago.

As with many earlier decisions by Apple—like eliminating floppy disk and CD-DVD drives, replacing parallel ports with USB ports and adopting Wi-Fi and Bluetooth wireless—the abandonment of the headphone jack, although disruptive, will allow the next generation of technology to develop and flourish.

Centronics interface

The Centronics connectors (25-pin and 36-pin) were dominant in computer peripheral technology for nearly thirty years beginning in 1970
The Centronics connectors (25-pin and 36-pin) were dominant in computer peripheral technology for nearly thirty years beginning in 1970

Interfaces and standards for connecting things together is an important part of electronics and computer history. The adoption of a new format, design or methodology over earlier ones—like USB for SCSI or Thunderbolt for FireWire—is complex and involves a mix of science, engineering, economics and a bit of good luck. In some cases, innovation can fill a void and be embraced rapidly if the cost of adoption is affordable. In other instances, persistent obsolescence can override innovation due to design weaknesses or ease-of-use considerations.

dr-an-wang
Dr. An Wang of Wang Laboratories

Robert Howard—a prolific inventor for seven decades beginning in the 1940s—was among the first engineers to understand that open technology standards were needed to connect computer equipment together. In the late 1960s, along with Dr. An Wang and Prentice Robinson at Wang Laboratories, Howard developed the 36-pin Centronics parallel interface to connect the Centronics Model 101 dot matrix printer to computers.

Although the Wang Labs team could not have predicted it, the Centronics connector took off and became one of the most successful computer connection technologies ever made. One reason for its success was the performance advantages over previous serial interfaces: parallel could carry multiple data streams between devices and could also simultaneously transmit status information.

More fundamentally, however, was the fact that the computer industry in the 1960s was going through a transition. Prior to the Centronics interface, each computer manufacturer used proprietary solutions designed to block customers from buying equipment from competitors. As the computer peripheral business expanded rapidly, however, the lack of standardized connection methods had become a barrier to progress.

As described by Robert Howard in his autobiography Connecting the Dots, the Centronics parallel port was the beginning of a shift in business philosophy among computer companies: “We came to the conclusion that if we developed a very easy, simple interface and gave it free to the world, it might be accepted and used by everyone. Apparently, the practice of creating unique interfaces was so resented by everyone in the computer industry that once IBM accepted our interface, seven other major companies immediately followed suit.” This was not the first or last major technical accomplishment associated with Robert Howard.

Robert Howard’s youth

robert-with-his-father-samuel-horowitz-howard-in-1931
Young Robert with his father Samuel Horowitz (Howard) in 1931

Robert Howard was born Robert Emanuel Horowitz in the Brownsville section of Brooklyn, New York to Samuel and Gertrude (Greenspoon) Horowitz on May 19, 1923. Robert’s father worked the midnight shift at the Main US Post Office in New York City. Although he was born three months premature and was afflicted with dyslexia, Robert grew into a very likeable and stout youngster with athletic talent in several sports.

After the family moved to Flatbush, Brooklyn, Robert spent much of his spare time at the Brooklyn Ice Palace where he learned to skate. He played youth hockey and his skills on the ice were noticed by the hockey coach at Brooklyn Technical High School, an elite all-boys public school. Despite his marginal grades, Robert was recruited to attend Brooklyn Tech as along as that he promised to improve his studies.

While at Brooklyn Tech, Robert excelled at machine shop and woodworking. He built a model airplane out of balsa wood and tissue paper and a refurbished gas engine as a school project. His 1937 delta-wing design was ahead of its time and he received an award for it.

Robert was very close to his maternal grandfather, Isaac Greenspoon, who immigrated to the US from Odessa, Russia in 1910. Isaac started a window-shade business on Manhattan’s Lower East Side that became very successful. Robert worked at his grandfather’s company as a teenager and acquired business skills and decision making that would later prove to be a critical part of his own success.

Although no one, including family members, expected Robert to graduate, he not only received his high school diploma but was awarded an athletic scholarship to attend the college of engineering at Columbia University. By the time of his graduation from Brooklyn Tech, World War II was well underway and the Horowitz’s changed their name to “Howard” to avoid the anti-Semitism that was on the rise during that period.

Before attending Columbia, Robert took a summer job working the night shift for the Sperry Gyroscope Company in Brooklyn. He was hired to operate the milling and cutting machines used to produce parts for US military searchlights. He kept the job when college classes started so he could cover his living expenses.

In a stroke of good fortune, Robert was hired as an engineer for a new vacuum tube project at Sperry. Although he was still a student and did not have an engineering degree, the new position required the machine-shop skills that he did have. Robert switched to night school and threw himself into the vacuum tube development program. This was his first experience with electronics and, like so many other innovators of his generation, the field soon became a focus of his work and he stick with it until the end of his career.

Howard’s early inventions

Robert Howard’s sons Larry and Richard with a Howard Television set in 1959
Robert Howard’s sons Larry and Richard with a Howard Television set in 1959

After a brief stint in the army, Robert was hired as an engineer at Sylvania Electric Company in Queens, New York. Starting at the age of twenty, he became involved in a seemingly endless series of projects in a wide variety of pursuits that would establish him as a pioneer of post-war electronics innovation. His accomplishments would include the founding of at least twenty-four different companies and the development of dozens of state-of-the-art inventions.

Robert Howard’s inventions are so numerous and varied that it is only possible to review a few of them here:

  • 1947: Rectangular TV tube
    All early television sets had round picture tubes. This meant that the rectangular broadcast image was either clipped the top and bottom or was reduced in size to fit in the 7, 10, 11 or 14-inch standard diameters of the first TV tubes. While working for Sylvania, Robert Howard proposed a rectangular tube design and convinced the company to manufacture one hundred of these 16-inch television CRTs.
  • 1950: Cable television
    After founding Howard Television, Inc. to build and sell his own design for black and white TVs, Robert secured a contract to create the first cable TV system that was designed as part of the newly constructed Windsor Park apartment complex in the Bayside section of Queens, New York. Later known as the master antenna television system (MATS), the project connected 18 buildings with a total 320 apartments via coaxial cable to a single television antenna with a signal booster and splitter that enhanced the reception for seven TV channels from the New York area.
  • 1961: Improvements in vinyl record production
    Right around the time that the recording industry was transitioning from 78s to LPs, Robert was collaborating with a company that made the machines that pressed vinyl records. He helped to improve the quality of the mass-produced records by introducing zinc plates into the process. He also invented a pressurized steam-based system for controlling the temperature of the molten vinyl as it was extruded into the record press. Known as the “The Boomer,” Robert Howard’s invention significantly increased the volume of phonograph record production while maintaining the highest stereo quality.
  • 1968: Casino computer system
    As a division of Wang Laboratories, Robert Howard founded Centronics to build the first computerized system to prevent skimming at casino gaming tables. Robert’s system tracked the relationship between the amount of cash coming in versus the value of chips going out. The computerized register centrally tracked the amount of each transaction, each table number and each dealer at any time during the day.

Contributions to printing

Robert Howard’s work with the casino industry led to plans for a printing device that could produce multiple hard copy records of gaming transactions. The available technologies of that time were either too expensive and large or too small and slow for this purpose. Working with Dr. Wang at Centronics on a new computer printing device, Robert’s curiosity and sense of entrepreneurship put him on a path toward innovations that helped bring the printing industry into the digital age.

Model 101 Centronics Dot Matrix Printer
Model 101 Centronics Dot Matrix Printer
  • 1970: Dot matrix printer
    Electronic impact printers with ink-soaked cloth ribbons like typewriters had been developed by IBM in the 1950s for printing from mainframe computers. These machines used a chain with a complete set of characters passing horizontally across the paper at high speed. As the paper moved vertically line-by-line, type hammers struck from behind and drove the accordion folded, tractor-fed paper against the ribbon and type characters on the chain. The IBM line printers had the speed that Robert needed but they cost about $25,000 and were the size of a large piece of office furniture.

    While at Wang Labs, Robert developed a self-contained impact print-head could be made to produce type characters on paper from a matrix of one hundred dots. His invention used wires or “pins” that could print up to 185 characters per second and hit the ribbon and paper hard enough to print all four copies of a multi-part form. The core technology of his invention was an electromagnetic switch that could make each pin strike the printing surface one thousand times per second, more than enough to satisfy the performance required for the gaming reports, and at a cost that was affordable.

    Following the formation of an independent partnership with the Japan-based Brother Industries, Robert Howard’s dot matrix technology was deployed in the Model 101 Centronics printer. Although there were competing dot matrix devices on the market, Centronics became the most successful mass production printer of the early computer industry. By the mid-1970s, sales grew exponentially and reached tens of thousands of units internationally. It was the popularity of the printer that made the above-mentioned Centronics interface into an industry standard for connecting peripherals to computers that lasted for decades until it was replaced by the Universal Serial Bus (USB) in the 1990s.

  • 1991: Direct imaging press

    Prototype of the Heidelberg Quickmaster DI press that was designed with integrated Presstek direct imaging technology
    Prototype of the Heidelberg Quickmaster DI press that was designed with integrated Presstek direct imaging technology

    Robert Howard made what is certainly his most enduring contribution to the printing industry toward the end of his career. In 1986, he founded Presstek to develop the first ever direct imaging offset printing technology. As he explained in his autobiography, “The problem at that time was that offset color was a slow, costly process. It took at least ten days to two weeks of what was called ‘prepress’ preparation before a color print job could even be put on a printing press, and because of this expense, it was both impractical and costly to print less than 10,000 copies of anything. I wanted to apply our knowledge of computers and imaging to the color printing business.”

    Robert’s breakthrough concept was to image the printing plates on the press itself and eliminate the darkrooms, film and chemistry associated with prepress processes. By 1991, a Presstek laser imaging system was added to a Heidelberg offset printing press and sold as the Heidelberg GTO DI (for direct imaging). At the center of the Presstek system was a set of four-color thermal laser heads that imaged plates on press. Aside from the novelty of the on-press plate imaging, the Presstek technology was waterless and was easily retrofitted onto the existing Heidelberg GTO design because it took the place of the unneeded dampening system.

    Beginning in 1993, Presstek and Heidelberg developed the Quickmaster DI press, a printing system that was designed from scratch with the on-press laser imaging technology. Launched at DRUPA in 1995, the Quickmaster DI became one of the most popular Heidelberg offset presses ever with 5,000 machines sold within the decade. The press included design innovations that made it easier to operate than previous offset systems. With this innovation, Robert Howard invented a technology that was both disruptive to the prepress industry and also enabled former prepress companies to enter the short-run color printing market.

Robert Howard died on December 19, 2014 at the age of 91. Although he is not a well-known figure in the history of printing—perhaps because of the variety of businesses and disciplines where he left his mark—Robert made critical contributions to the industry, especially in the final decades of the twentieth century. His exceptional talents as an engineer and entrepreneur were essential to the transition of offset printing from an exclusively analog process to one that uses a host of integrated digital technologies.

George Baxter (1804–1867): Pictorial color printing

George Baxter: July 31, 1804–January 11, 1867
George Baxter: Jul 31, 1804–Jan 11, 1867

Prior to the invention of photography and photomechanical halftones, the printing of pictures required the handwork of skilled artists. For centuries, craftsmen used various manual techniques—engraving, etching, stippling and drawing—to create original images on wood blocks, metal plates or lithographic stones that could be inked and printed onto paper.

At each evolutionary stage—from relief to intaglio to lithography—pictorial printing became incrementally more productive. However, the craftsmen’s work persisted and the process remained slow. Well into the 1800s, it was common for creative work on pictures such as engraved images on text pages or separately printed lithographic plates to begin a year or two before the date of publication.

Although the artistic work was time-consuming, it often produced striking results. By the time color printing methods were perfected, magnificent pictures began to appear. In the mid-nineteenth century, pictorial color printers—some using RBY or RBYK models and others using “tinting” techniques of up to 20 or even 30 different colors—were producing astonishingly beautiful prints.

As the methods advanced and cost per picture declined, the quantity of color printing grew. This expansion was in part due to the industrialization of printing press machinery. The speed and volume of print was being driven up exponentially by metal cylinders, steam power and rotary printing equipment.

The Coronation of Queen Victoria and the Opening of Parliament (1842)
“Her Most Gracious Majesty Receiving the Sacrament at her Coronation” (1841) is among George Baxter’s most famous pictorial work. It includes two hundred identifiable portraits of individuals who were present at the event.

Another side of the surge in color was that more people than ever before had access to the new low-priced prints. For the first time, average people could buy printed copies of paintings and other items previously seen only in the private collections of society’s elite. The color printer became for the people the disseminator of artistic masterpieces and the chronicler of contemporary events.

A few enterprising printers recognized that industrial society had created an opportunity to produce and sell pictures to the general public. They established companies in cities and employed the available labor—including child workers—to print inexpensive color pictures for the growing urban population. In this environment, the Englishman George Baxter emerged as perhaps the most important figure of the era of pictorial color printing.

George Baxter’s innovation

In some respects, the color work of George Baxter should be considered Victorian-age fine art. Even though he produced upwards of 20 million prints during his lifetime, Baxter’s work exhibits virtuosity in the technical aspects of platemaking and printing as well as extraordinary gifts as an engraver.

It would take many decades after his death for the meaning of Baxter’s accomplishments to be fully appreciated. As C.T. Courtney Lewis explained in George Baxter, Color Printer, His Life and Work in 1908, “His genius was not unrecognized in his own day; yet it seems that it is only now that the hour of his complete triumph has sounded … he was not a printer merely: he was an artist, a pioneer, and a man of many and versatile talents.”

The innovation for which George Baxter is known—and for which he applied for on October 23, 1835 and was granted a patent on April 23, 1836—is a complex one. To produce long press runs of beautiful and economically viability color pictures, Baxter combined two previously existing printing techniques:

  1. Steel or copper plate intaglio printing
  2. Woodblock relief printing

Baxter’s novelty was that the first impression was printed in black or gray ink with an intaglio outline or “key plate” and then subsequent multiple layers of color tinting were printed with relief woodblocks. His convergence of intaglio and relief printing produced pictures that were significantly superior to anything printed with either process independently of one another.

An early example of Baxter’s color printing innovation, “Evening on the sea” (1835), is the frontispiece of Robert Mudie’s book “The Sea”
An early example of Baxter’s color printing innovation, “Evening on the sea” (1835), is the frontispiece of Robert Mudie’s book “The Sea”

As Baxter himself explained in his patent application, “My invention consists in colouring such impressions of steel and copper plate engravings and lithographic and zincographic printing by means of block printing in place of colouring such impressions by hand as heretofore practised, and which is an expensive process; and by such a process producing coloured impressions of a high degree of perfection and far superior in appearance to those which are coloured by hand and such prints as are obtained by means of block printing in various colours uncombined with copper and steel lithographic or zincographic impressions.”

Prior to Baxter, key plates had been used in the more labor-intensive process of color tinting by hand. In the case of the woodblock method (also known as chromoxylography), it was used previously by others without the preliminary step of the key plate. It is also true that a combination of the two methods had been performed a century earlier by the Englishman Elisha Kirkall, but with nothing approaching the level of Baxter’s perfection or economy.

A decisive aspect of what became known as Baxter’s Process was the remarkably consistent quality of the entire color printing run. This was achieved with tight registration—using four pins or “pointers” in the press to hold the paper in position from one impression to the next—and oil-based inks. The advent of improved brightness of pigments and the permanent quality of the oil-based inks gave Baxter’s prints a superior color fidelity.

Among the first examples of Baxter’s method was the frontispiece of Robert Mudie’s 1835 book The Sea. What may seem today as a subtle change, the picture of a boat at sea during sunset carries a degree of precision and detail that was not achievable prior to Baxter’s two-step process.

Early life

George Baxter was born on July 31, 1804 at Lewes in the southeastern English county of Sussex. This area is known to have been a center of the early English printing and papermaking industries.

George was the second son of John Baxter, the proprietor of a typography, printing and publishing establishment in Lewes. George’s father would gain in his lifetime a reputation as an advanced printer who was the first to test and perfect several early industrial innovations in printing press technology.

George attended Cliffe House Academy and went to high school at St. Ann’s in Lewes. After he finished school, he worked in a book shop in Brighton, a seaside town less than ten miles from home. Later, although the record is unclear, he apprenticed as a wood engraver and lithographer.

By the age of nineteen, George was focusing on the artistic elements of printing rather than the mechanical and he began making a name for himself as a gifted illustrator. By 1826, it is known that George Baxter was in Lewes at his father’s establishment identifying himself as a “wood-engraver.”

At age 23, George migrated to London and set up his own business as an engraver and printer. Six months after starting his enterprise in London, George married Mary Harrild, daughter of Robert Harrild, a printing industry innovator and business partner of John Baxter. The record shows that at this time George Baxter began his experiments with color printing.

Greatest works

Once he had demonstrated to himself—if not also to everyone in the printing business—that his patented process represented an important breakthrough, Baxter started on a path that would continue for the next thirty years. During the period of his first patent grant (1834-1849), Baxter had no competitors in England for the process that he advertised as “Pictorial Colour Printing for Book Illustration and Picture Printing.”

“The Pictorial Album, or Cabinet of Paintings for the Year 1837” included eleven color prints by George Baxter. Some consider this to be among his finest work.
“The Pictorial Album, or Cabinet of Paintings for the Year 1837” included eleven color prints by George Baxter. Some consider this to be among his finest work.

At the end of 1836, Baxter produced a volume called The Pictorial Album, or Cabinet of Paintings that was published by Chapman and Hall. This project—which contained ten pictures including reproductions of several works of well-known artists of the day along with a frontispiece—was the first major publication of Baxter’s process. Some have said it was the high-water mark of his craft.

In 1841, Baxter printed two pictures called “Her Most Gracious Majesty Receiving the Sacrament at Her Coronation” and “The Arrival Her Most Gracious Majesty Queen Victoria at the House of Lords to Open her First Parliament” that include 200 portraits of identifiable guests at the event at Westminster Abbey in 1938. These oil-color prints—which are 21-3/4” by 17-1/2”—were prepared in cooperation with Buckingham Palace and gained Baxter direct access to the Queen and other royals in Britain and elsewhere in Europe.

Confident of the superiority of his methods, George Baxter was not shy about self-promotion as he gained a level of notoriety for his invention. However, as Baxter was continually preoccupied with the artistic and technical aspects of his business, he was never successful financially. In 1849, he petitioned the Privy Council and was granted a five-year extension on his patent on the grounds that he had lost money during the previous fourteen years.

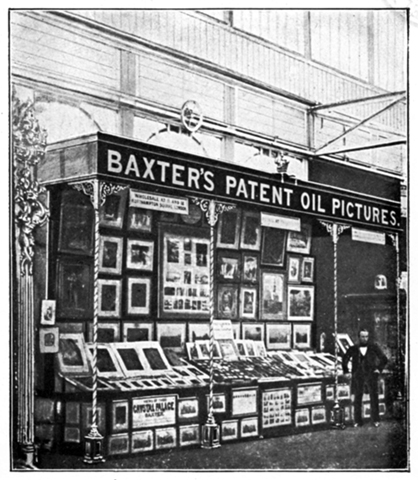

Baxter’s print booth at the Great Exhibition
Baxter’s print booth at the Great Exhibition

In 1851, Baxter prints were on display at The Great Exhibition (also called the Crystal Palace Exhibition) in London. Of his work, the official catalog of the expo said, “Mr. George Baxter, the patentee of the process of printing in oil colours, exhibits in the Fine Art Court, upwards of sixty specimens (from the largest size to the smallest miniature), of his choicest productions … The visitors will indeed be delighted with these charming specimens which form the principal attraction in the Fine Art Court.”

Baxter also exhibited prints at the international expos in New York City in 1852 and Paris in 1855. He was awarded medals for these entries. Later, Baxter produced a series of prints called “Gems of The Great Exhibition” which show the grandeur of his vision and the dexterity of his engraving skills.

Baxter’s series “Gems of the Great Exhibition” (1852) included this image of the exterior of the Crystal Palace in London.
Baxter’s series “Gems of the Great Exhibition” (1852) included this image of the exterior of the Crystal Palace in London.

Legacy

In later years, while still holding his patent, Baxter took to licensing his method to other printers as a means of generating income. Having obtained color printing patents in France, Belgium and Germany as well as Britain, Baxter sold annual licenses to a handful of printers in all of these countries. Some have said that the work of these printers never approached Baxter’s in graceful detail and delicate coloring.

Six years after his process went into the public domain, Baxter liquidated his oil-color printing business and sold off his inventory of prints and intaglio plates and woodblocks to another printer. Part of this arrangement included Baxter’s agreement to provide technical assistance to the new owner.

The reasons for his decision to exit the business are unknown. It is clear that by the 1860s other competing methods such as chromolithography (Engelmann, 1837) and photography (Daguerre, 1839) were challenging the Baxter method in both quality and cost. By 1865, the remainder of Baxter’s printing business went bankrupt.

In late 1866 George Baxter was struck in the head during an accident involving a horse-drawn omnibus. He died at his residence in Sydenham on January 11, 1867 and was buried at Christ Church, Forest Hill in London. A red granite obelisk above his grave bears the inscription “the sole inventor and patentee of oil-colour printing.”

Some believed that Baxter’s significance and contribution had been exaggerated by a cult of enthusiasm built up by clubs and associations organized to collect copies of his works. One such critic, R.M. Burch, wrote of Baxter in 1910, “Had he not been, rediscovered … his name and fame would in all probability have completely passed into the limbo of forgetfulness.”

However, George Baxter is remembered for the lasting impact of his original color printing method and for making color printing popular and viable. Like others before and after him, Baxter’s genius and creative gifts intersected with important changes in the means and methods of printing during his lifetime. It is undeniable that George Baxter played a decisive role in expanding the influence of print upon society during the Victorian era.
